KASUGA Terminal Blocks
Terminal Blocks for Branching
Terminal Block for Branching
The TQB series is a high-capacity terminal block designed for branch circuits.
Compared with conventional branch wiring using copper bus bars, it reduces labor time by about one-sixth and installation space by approximately 15%.
Because it is a modular structure without side bases, it achieves excellent space efficiency.
All models are rated with consideration for the use of heat-resistant wires.

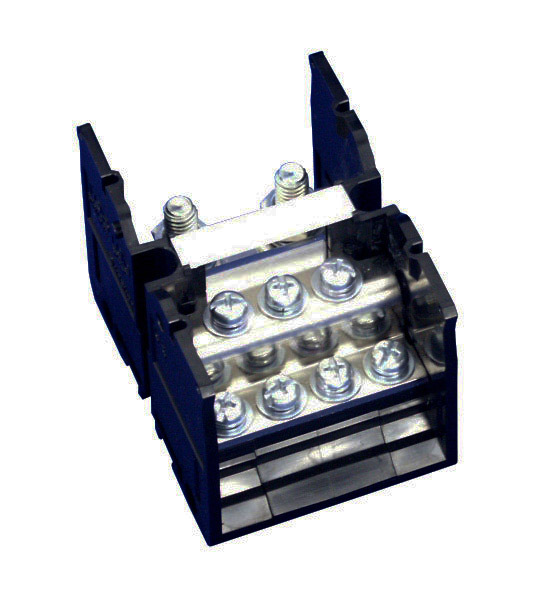

（The image is TQB100D01.)
Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.
| Series | Product Name | Insulating Voltage（V) | Current Ratings（A)1 | Current Ratings（A)2 | Screw Size | Terminal Structure | Terminal Pitch（mm） | Number of Poles | Applicable Wires（Max.）㎟ | Applicable Wires（AWG） |
|---|---|---|---|---|---|---|---|---|---|---|
| TQB | TQB60D01 | 600 | 40 | 90 | M4,M6 | Standard Screw with Round Washer | 50.0 | 1 | 5.5/22 | AWG16～10,AWG10～4 |
| TQB | TQB60D02 | 600 | 40 | 90 | M4,M6 | Standard Screw with Round Washer | 50.0 | 2 | 5.5/22 | AWG16～10,AWG10～4 |
| TQB | TQB60D03 | 600 | 40 | 90 | M4,M6 | Standard Screw with Round Washer | 50.0 | 3 | 5.5/22 | AWG16～10,AWG10～4 |
| TQB | TQB60D04 | 600 | 40 | 90 | M4,M6 | Standard Screw with Round Washer | 50.0 | 4 | 5.5/22 | AWG16～10,AWG10～4 |
| TQB | TQB100D01 | 600 | 50,80 | 175 | M5,M8 | Stud | 60.0 | 1 | 8,14/60 | AWG12～6,AWG8～1 |
| TQB | TQB100D02 | 600 | 50,80 | 175 | M5,M8 | Stud | 60.0 | 2 | 8,14/60 | AWG12～6,AWG8～1 |
| TQB | TQB100D03 | 600 | 50,80 | 175 | M5,M8 | Stud | 60.0 | 3 | 8,14/60 | AWG12～6,AWG8～1 |
| TQB | TQB100D04 | 600 | 50,80 | 175 | M5,M8 | Stud | 60.0 | 4 | 8,14/60 | AWG12～6,AWG8～1 |
| TQB | TQB200D01 | 600 | 80,90 | 250,310 | M5,M6,M10 | Stud | 77.5 | 1 | 22/150 | AWG12～6,AWG10～4 |
| TQB | TQB200D02 | 600 | 80,90 | 250,310 | M5,M6,M10 | Stud | 77.5 | 2 | 22/150 | AWG12～6,AWG10～4 |
| TQB | TQB200D03 | 600 | 80,90 | 250,310 | M5,M6,M10 | Stud | 77.5 | 3 | 22/150 | AWG12～6,AWG10～4 |
| TQB | TQB200D04 | 600 | 80,90 | 250,310 | M5,M6,M10 | Stud | 77.5 | 4 | 22/150 | AWG12～6,AWG10～4 |
| TQB | TQB400D01 | 600 | 240 | 440 | M6,M8,M10,M12 | Stud | 112.0 | 1 | 100/200 | AWG14～10,AWG10～4、AWG4～1、AWG1/0～4/0,kcmil350～400 |
| TQB | TQB400D02 | 600 | 240 | 440 | M6,M8,M10,M12 | Stud | 112.0 | 2 | 100/200 | AWG14～10,AWG10～4、AWG4～1、AWG1/0～4/0,kcmil350～400 |
| TQB | TQB400D03 | 600 | 240 | 440 | M6,M8,M10,M12 | Stud | 112.0 | 3 | 100/200 | AWG14～10,AWG10～4、AWG4～1、AWG1/0～4/0,kcmil350～400 |
| TQB | TQB400D04 | 600 | 240 | 440 | M6,M8,M10,M12 | Stud | 112.0 | 4 | 100/200 | AWG14～10,AWG10～4、AWG4～1、AWG1/0～4/0,kcmil350～400 |
