Terminal Block for Sensors

Terminal Block for Sensors

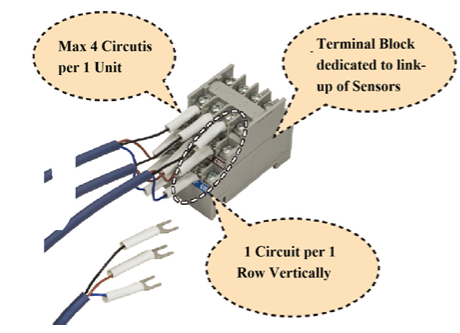

This is a dedicated terminal block designed specifically for sensor wire connections.
It is a rail-mounted, Spring-loaded Screw Terminal type.
A single unit can relay up to four circuits, and it can also be installed in an optional waterproof relay terminal box sold separately.

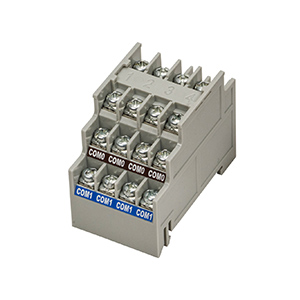

(The image is TNS10.)

Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Product Name Series Insulating Voltage(V) Current Ratings(A) Screw Size Terminal Figures (Tiers) Terminal Pitch(mm) Number of Poles Applicable Wires (Max.)㎟
TNS10 TNS 250 16 M3 3,2 7 4 1.25
