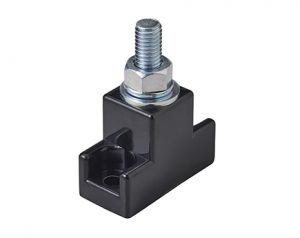

KASUGA Terminal Blocks Stud Type Supporter Stud Type Supporter This is a Stud Type supporter for fixation. This cannot be used for energizing applications. (The image is TS600CHM.) Specifications Item Specification Ambient Temperature －25～＋55℃（without freezing nor condensation） Relative Humidity 45～85％RH Insulation Resistance Min.100MΩ（500V Megger Test） Commercial Frequency Withstanding Voltage 2500V 1 Min. ●Materials：Bolt/ Nut/ Washer Zinc-plated Steel（Trivalent Chromate Treatment） Base Phenolic Resin Product Name Stud Diameter Tightening Torque（N・m） Rough Weight TS100CHM M8 8～10 40g TS200CHM M10 15～20 80g TS600CHM M12 25～35 130g
