Stud Terminal Block

Stud Terminal Block (for fixed use)

* Compact and lightweight, requiring minimal installation space, and allowing connections from any direction.
* Ideal for use as relay terminals in high-current circuits, test terminals, and supports for bus bars (copper strips).
* Equipped with a guide at the tip of the bolt, making it easy to attach and remove nuts.

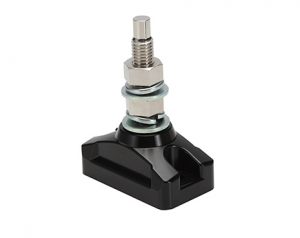

（The image is TS100R.)



Regarding the specifications not listed in the below chart, please check them at: <big><big><b><a href=”https://www.otax-en.com/tanshidai_search_eng/tanshidai/create” target=”_blank” rel=”noopener”>KASUGA Terminal Block Product Search</a></b></big></big>. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Series Product Name Insulation Voltage（V) Current Ratings（A) Screw Size Applicable Wires（Max.）㎟ Mounting Method Terminal Type
TS TS100R 600 130 M8 38 Direct Mount Stud (with Guide)
TS TS200R 600 240 M10 100 Direct Mount Stud (with Guide)
TS TS400R 600 370 M12 200 Direct Mount Stud (with Guide)
TS TS600R 600 520 M16 325 Direct Mount Stud (with Guide)
