Shorting Bar

These are shorting bars short-circuiting terminals.

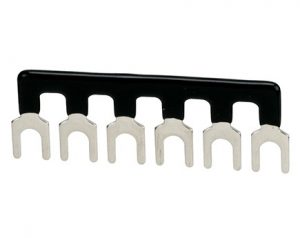

(The image is TJ161B.)

For Terminal Blocks

Applicable TB	Pitch	Shape	Type	Energizing Current	Number of Poles	Product Name	Rough Weight per 1 pc	pcs included
TEN7	7mm		w/o coat	20A	20	TJ7201A	7g	10 pcs included
			with coat		20	TJ7201B	8.5g	10 pcs included
TFP15、TFPM15	7mm		with coat	20A	2	TJ723B	0.8g	10 pcs included
					6	TJ763B	2.8g	10 pcs included
					20	TJ7203B	9.8g	10 pcs included
TX7、TXU7、 TXM7、TXUM7	7.3mm		w/o coat	20A	6	TJ762A	2.5g	10 pcs included
					20	TJ7202A	8.5g	10 pcs included
			with coat		2	TJ722B	0.9g	10 pcs included
					6	TJ762B	3g	10 pcs included
					20	TJ7202B	10g	10 pcs included
			w/o coat（Bended）		6	TJ762C	2.5g	10 pcs included
TX10SM3、TXU10SM3、TX10S、TXU10S、 TFP20、TTFP203※2、TTFP2035※2、 TTG203※2、TTG20U3※2、TTG2035※2、TTG20U35※2、TXM10SM3、TXUM10SM3、 TXM10S、TXUM10S、TFPM20 Note Be sure to use with coat types for TFP, TTFP, and TFPM Series.	8mm		w/o coat	20A	6	TJ164A	3g	10 pcs included
					20	TJ1204A	9.5g	10 pcs included
			with coat		2	JTJ124BB	1g	10 pcs included
					6	TJ164B	3.5g	10 pcs included
					20	TJ1204B	11.5g	10 pcs included
			w/o coat（Bended）		6	TJ164C	3g	10 pcs included
	16mm（1 pole skip）		with coat（Bended）		2	JTJ024BB	1.5g	10 pcs included
	8				JTJ084BB	3.5g	10 pcs included
TT10SK※2、TT10SUK※2、 TT10SKM35※2、TT10SUKM35※2、 TEN8※3、TEU8※3	8mm		w/o coat	20A	6	TJ161A	2.5g	10 pcs included
					20	TJ1201A	9g	10 pcs included
			with coat		2	TJ121B	0.9g	10 pcs included
					6	TJ161B	3g	10 pcs included
					20	TJ1201B	10g	10 pcs included
			w/o coat（Bended）		6	TJ161C	2.5g	10 pcs included
TX10、TXU10、 TXM10、TXUM10	9.5mm		w/o coat	20A	6	TJ162A	3.5g	10 pcs included
					20	TJ1202A	10.5g	10 pcs included
			with coat		2	JTJ122BB	1g	10 pcs included
					6	TJ162B	4g	10 pcs included
					20	TJ1202B	12g	10 pcs included
			w/o coat（Bended）		6	TJ162C	3.5g	10 pcs included
	19mm（1 pole skip）		with coat（Bended）		2	JTJ022BB	1.5g	10 pcs included
	8				JTJ082BB	3.5g	10 pcs included
T10、TL15	10mm		w/o coat	20A	6	TJ163A	3.5g	10 pcs included
			with coat			TJ163B	4g	10 pcs included
			w/o coat（Bended）			TJ163C	3.5g	10 pcs included
TEN11、TEU11	11mm		w/o coat	30A	6	TJ261A	5g	10 pcs included
			with coat			TJ261B	6g	10 pcs included
			w/o coat（Bended）			TJ261C	5g	10 pcs included
TFP40、TTG40※2、TTG40U※2、 TFPM40	11mm		with coat	40A	2	JTJ224B	2g	10 pcs included
					6	JTJ264B	6g	10 pcs included
TX20、TXU20、 TXM20、TXUM20、 TT20K※2、TT20UK※2	11.5mm		w/o coat	30A	6	TJ262A	5g	10 pcs included
			with coat		2	TJ222B	2g	10 pcs included
					6	TJ262B	6g	10 pcs included
			w/o coat（Bended）		6	TJ262C	5g	10 pcs included
T20C、TL25	12mm		w/o coat	30A	6	TJ263A	5g	10 pcs included
			with coat			TJ263B	6g	10 pcs included
			w/o coat（Bended）			TJ263C	5g	10 pcs included
TX30、TXU30、 TXM30、TXUM30 T30C、TL35、TEU14	15mm		with coat（Bended）	50A	2	JTJ302B	7g	10 pcs included
TX50、TXU50、TFP80、 TXM50、TXUM50、TFPM80	15mm		with coat（Bended）	80A	2	JTJ802B	10g	10 pcs included
TX60、TXU60、 TXM60、TXUM60、 TC60C	19mm			90A	2	JTJ602B	15g	10 pcs included
TX100、TXU100、 TXM100、TXUM100、 TC100C	26mm			130A	2	JTJ1002B	34g	10 pcs included

**Note:** Ensure that the total current of all shorted poles does not exceed the rated current of the short bar.
※１ For Push-in terminals, please refer to the separate table below.
※２ Use for the lower-tier terminals. If used on the upper-tier terminals, the short bar must be removed when tightening or loosening the screws on the lower-tier terminals.
※３ One-pole skip short bars (TJ024BB, JTJ084BB) can also be used.

●For Relay Sockets
【For Within the Same Socket】

※ □ in Product Name is filled with Color Codes for coating. B(Black), Y(Amber).

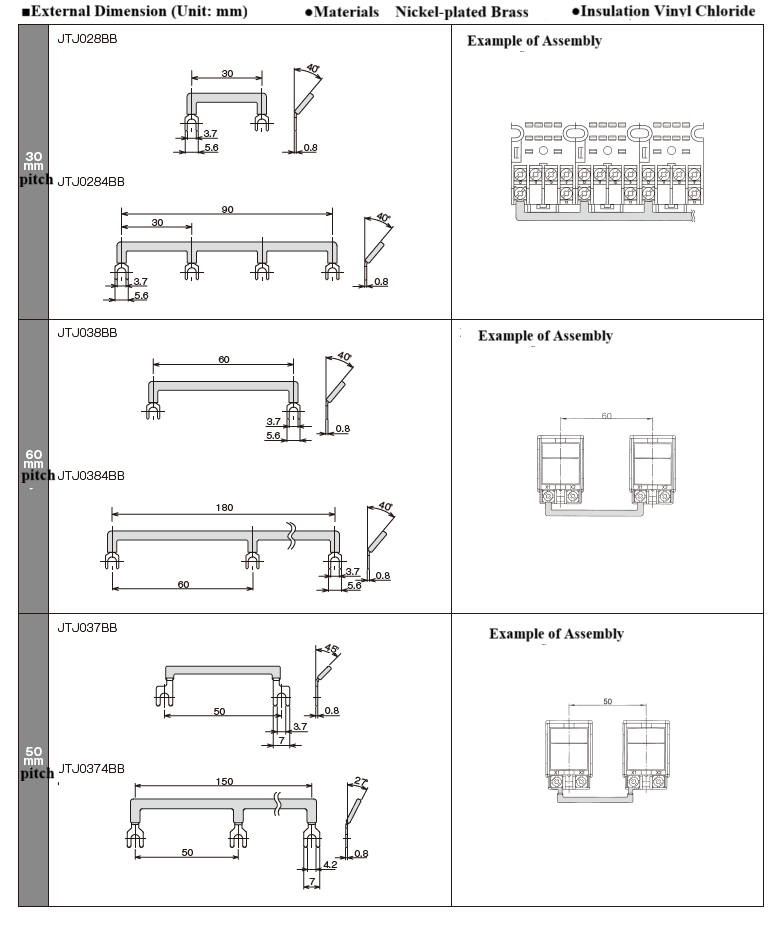

【Between Sockets】
●Materials：Brass　●Surface Treatment：Nickel-plating　●Insulation Coat：Vinyl Chloride

※ □ in Product Name is filled with Color Codes for coating. B(Black)、Y(Amber).

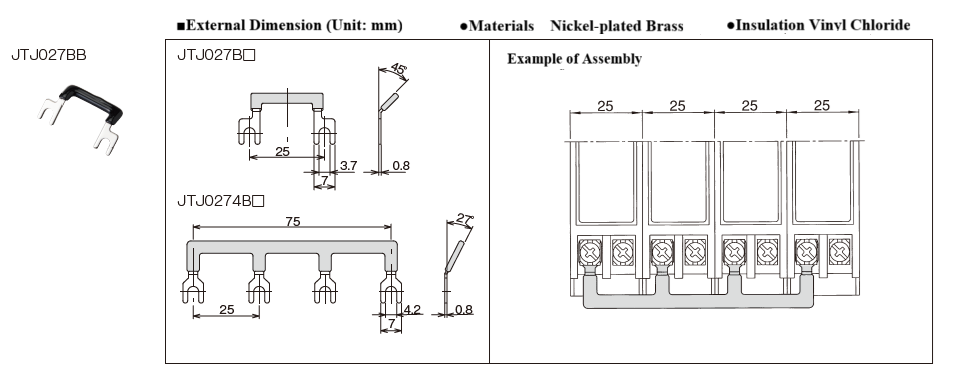

● For Relay Sockets, Control Units
●Material：Brass ●Surface Treatment：Nickel-plating ●Insulating Coat：Vinyl Chloride

●For Remote-conrolled Relay
【Power Side】
●Material: Copper ●Surface Treatment：Nickel-plating ●Insulation Coat：Vinyl Chloride

※ □ is filled with Color Code of Coating. B(Black), R(Red), W(White).

【Operating Circuit Side】
●Material：Brass ●Surface Treatment：Nickel-plating ●Insulation Coat：Vinyl Chloride

※ □ is filled with Color Code for Coating.B(Black), S(Blue), Y(Amber).
※ JTJ0274BはBlack・Blueのみ

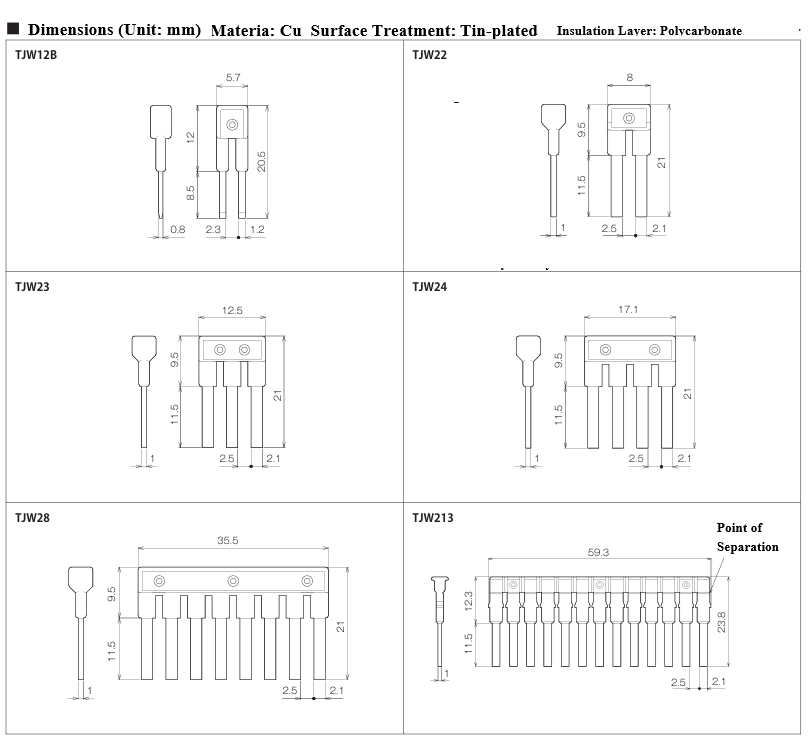

For Push-in Terminals
Note：The TJW213 can be cut with pliers to the required number of poles.
Please note that when it is cut, the current-carrying section becomes exposed, so handle with care.
