KASUGA Terminal Blocks

KASUGA Terminal Blocks

Screw (Finger Protect)

Screw – Finger Protect Terminal Block

This is an IP20 finger-protected terminal block designed to prevent electric shock accidents caused by workers or operators accidentally touching conductive parts with their fingers.
All terminals are of the Spring-loaded Screw Terminal type.
Two configurations are available: the rail-mounted TFP and TTFP series, and the TFPM series, which consists of a fixed number of poles assembled using a shaft.

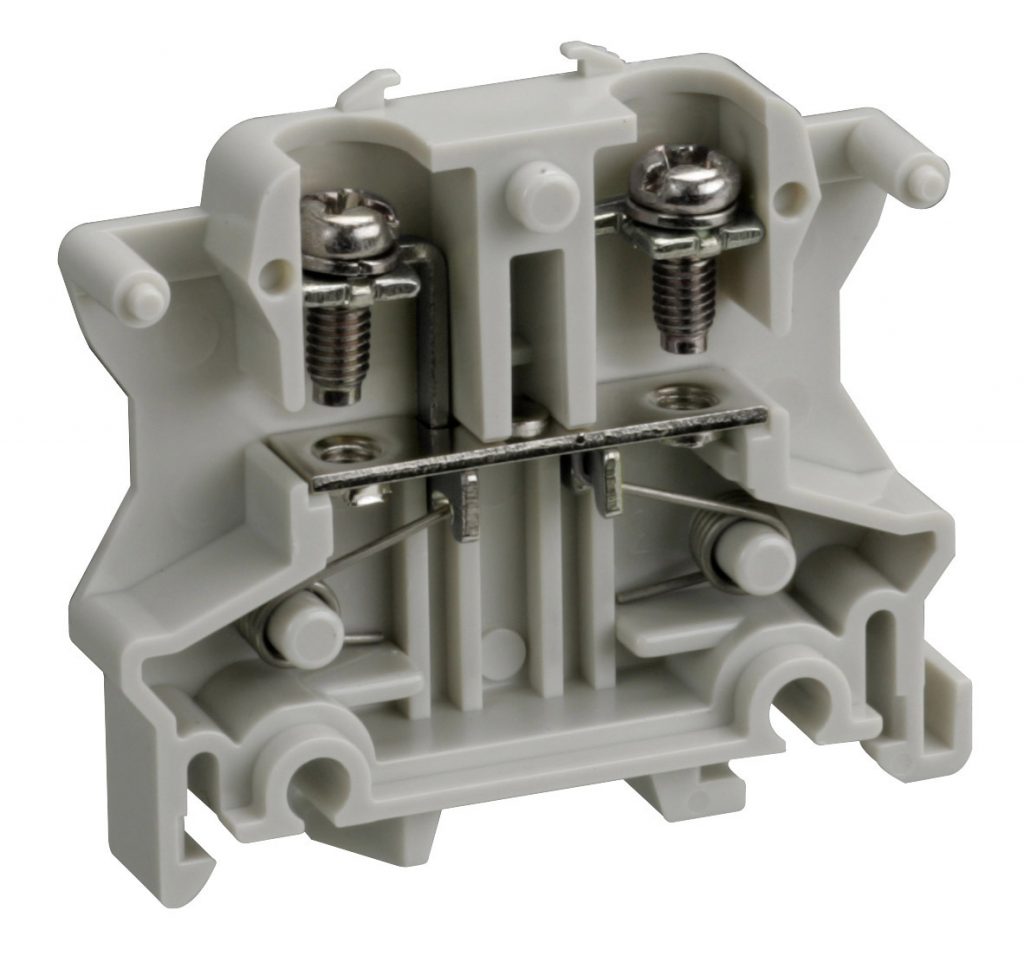

(The image is TFP15.)

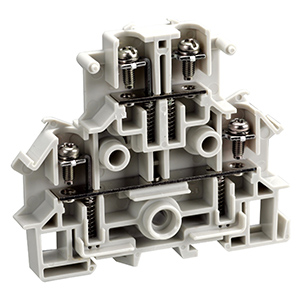

(The image is TTFP203.)

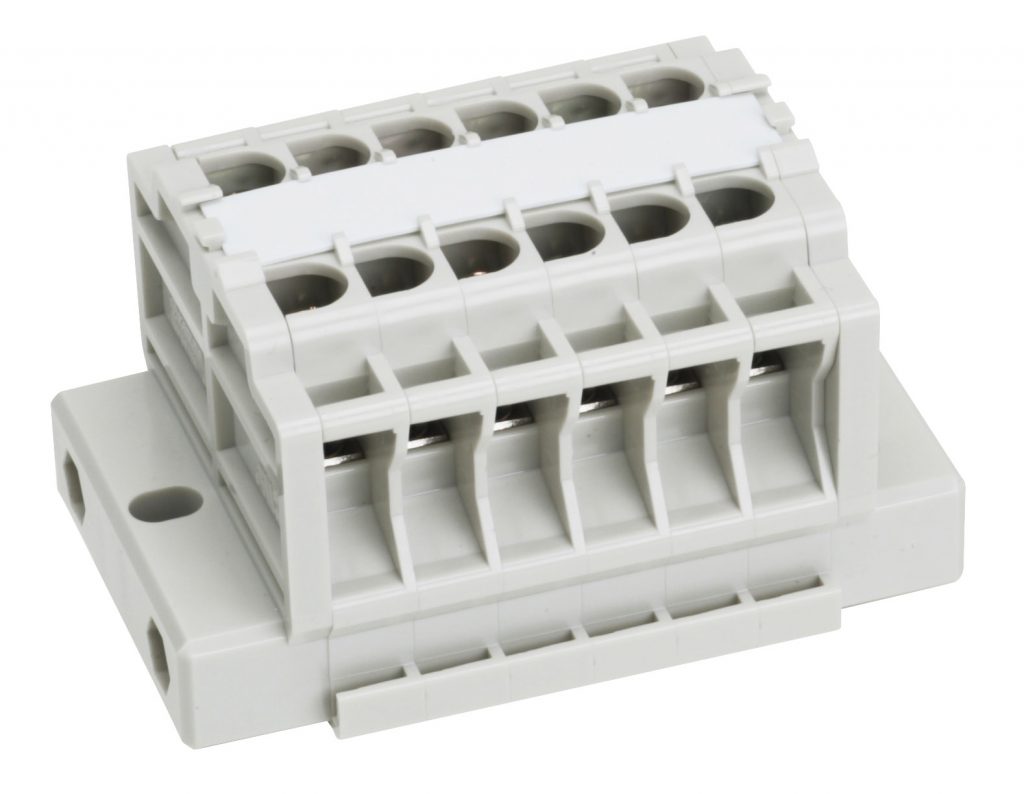

(The image is TFPM1506.)

Common Specifications/ Materials/ Ratings Cnforming to Overseas Standards（Rail-mount）

Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（Assembled）

Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Series Product Name Mounting Method Insulating Voltage（V) Current Ratings（A) Screw Size Terminal-pitch (mm） Number of Poles Applicable Wires（Max.）㎟ Applicable Wires（AWG）
TFP TFP15 Rail Mount 800 15 M3 7 – 1.25 AWG20～16
TFP TFP20 Rail Mount 800 20 M3.5 8 – 2.0 AWG20～14
TFP TFP40 Rail Mount 800 40 M4 11 – 5.5 AWG18～10
TFP TFP80 Rail Mount 800 80 M5 14 – 14.0 AWG16～6
TFP TTFP203 Rail Mount 800 20 M3 8 – 2.0 AWG20～14
TFP TTFP2035 Rail Mount 800 20 M3.5 8 – 2.0 AWG20～14
TFPM TFPM1502 Direct Mount 800 15 M3 7 2 1.25 AWG20～16
TFPM TFPM1503 Direct Mount 800 15 M3 7 3 1.25 AWG20～16
TFPM TFPM1504 Direct Mount 800 15 M3 7 4 1.25 AWG20～16
TFPM TFPM1506 Direct Mount 800 15 M3 7 6 1.25 AWG20～16
TFPM TFPM1508 Direct Mount 800 15 M3 7 8 1.25 AWG20～16
TFPM TFPM1510 Direct Mount 800 15 M3 7 10 1.25 AWG20～16
TFPM TFPM1512 Direct Mount 800 15 M3 7 12 1.25 AWG20～16
TFPM TFPM1514 Direct Mount 800 15 M3 7 14 1.25 AWG20～16
TFPM TFPM1515 Direct Mount 800 15 M3 7 15 1.25 AWG20～16
TFPM TFPM1516 Direct Mount 800 15 M3 7 16 1.25 AWG20～16
TFPM TFPM1518 Direct Mount 800 15 M3 7 18 1.25 AWG20～16
TFPM TFPM1520 Direct Mount 800 15 M3 7 20 1.25 AWG20～16
TFPM TFPM1522 Direct Mount 800 15 M3 7 22 1.25 AWG20～16
TFPM TFPM1524 Direct Mount 800 15 M3 7 24 1.25 AWG20～16
TFPM TFPM1525 Direct Mount 800 15 M3 7 25 1.25 AWG20～16
TFPM TFPM1530 Direct Mount 800 15 M3 7 30 1.25 AWG20～16
TFPM TFPM2002 Direct Mount 800 20 M3.5 8 2 2.0 AWG20～14
TFPM TFPM2003 Direct Mount 800 20 M3.5 8 3 2.0 AWG20～14
TFPM TFPM2004 Direct Mount 800 20 M3.5 8 4 2.0 AWG20～14
TFPM TFPM2006 Direct Mount 800 20 M3.5 8 6 2.0 AWG20～14
TFPM TFPM2008 Direct Mount 800 20 M3.5 8 8 2.0 AWG20～14
TFPM TFPM2010 Direct Mount 800 20 M3.5 8 10 2.0 AWG20～14
TFPM TFPM2012 Direct Mount 800 20 M3.5 8 12 2.0 AWG20～14
TFPM TFPM2014 Direct Mount 800 20 M3.5 8 14 2.0 AWG20～14
TFPM TFPM2015 Direct Mount 800 20 M3.5 8 15 2.0 AWG20～14
TFPM TFPM2016 Direct Mount 800 20 M3.5 8 16 2.0 AWG20～14
TFPM TFPM2018 Direct Mount 800 20 M3.5 8 18 2.0 AWG20～14
TFPM TFPM2020 Direct Mount 800 20 M3.5 8 20 2.0 AWG20～14
TFPM TFPM2022 Direct Mount 800 20 M3.5 8 22 2.0 AWG20～14
TFPM TFPM2024 Direct Mount 800 20 M3.5 8 24 2.0 AWG20～14
TFPM TFPM2025 Direct Mount 800 20 M3.5 8 25 2.0 AWG20～14
TFPM TFPM2030 Direct Mount 800 20 M3.5 8 30 2.0 AWG20～14
TFPM TFPM4002 Direct Mount 800 40 M4 11 2 5.5 AWG18～10
TFPM TFPM4003 Direct Mount 800 40 M4 11 3 5.5 AWG18～10
TFPM TFPM4004 Direct Mount 800 40 M4 11 4 5.5 AWG18～10
TFPM TFPM4006 Direct Mount 800 40 M4 11 6 5.5 AWG18～10
TFPM TFPM4008 Direct Mount 800 40 M4 11 8 5.5 AWG18～10
TFPM TFPM4010 Direct Mount 800 40 M4 11 10 5.5 AWG18～10
TFPM TFPM4012 Direct Mount 800 40 M4 11 12 5.5 AWG18～10
TFPM TFPM4014 Direct Mount 800 40 M4 11 14 5.5 AWG18～10
TFPM TFPM4015 Direct Mount 800 40 M4 11 15 5.5 AWG18～10
TFPM TFPM4016 Direct Mount 800 40 M4 11 16 5.5 AWG18～10
TFPM TFPM4018 Direct Mount 800 40 M4 11 18 5.5 AWG18～10
TFPM TFPM4020 Direct Mount 800 40 M4 11 20 5.5 AWG18～10
TFPM TFPM8002 Direct Mount 800 80 M5 14 2 14.0 AWG16～6
TFPM TFPM8003 Direct Mount 800 80 M5 14 3 14.0 AWG16～6
TFPM TFPM8004 Direct Mount 800 80 M5 14 4 14.0 AWG16～6
TFPM TFPM8006 Direct Mount 800 80 M5 14 6 14.0 AWG16～6
TFPM TFPM8008 Direct Mount 800 80 M5 14 8 14.0 AWG16～6
TFPM TFPM8010 Direct Mount 800 80 M5 14 10 14.0 AWG16～6
TFPM TFPM8012 Direct Mount 800 80 M5 14 12 14.0 AWG16～6
TFPM TFPM8014 Direct Mount 800 80 M5 14 14 14.0 AWG16～6
TFPM TFPM8015 Direct Mount 800 80 M5 14 15 14.0 AWG16～6
