KASUGA Terminal Blocks
Push-in (Rail-mount)
Push-in Rail-mount Terminal Block

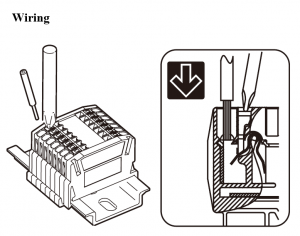

While pressing the button with a Phillips screwdriver, insert the wire.
Releasing the button completes the connection, greatly reducing wiring time for terminal block installation.
There are four connection types available: 1-to-1, 1-to-2, 2-to-2, and (1-to-1) × 2.

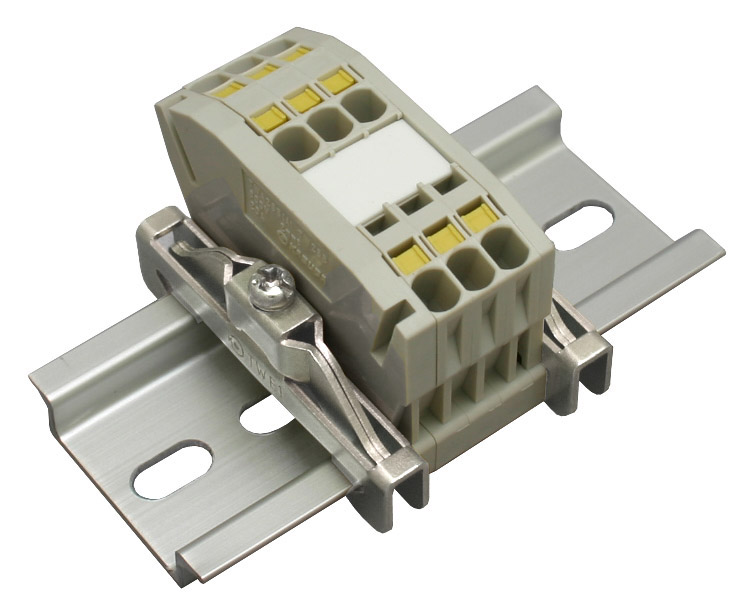

(The image is TW25B.)

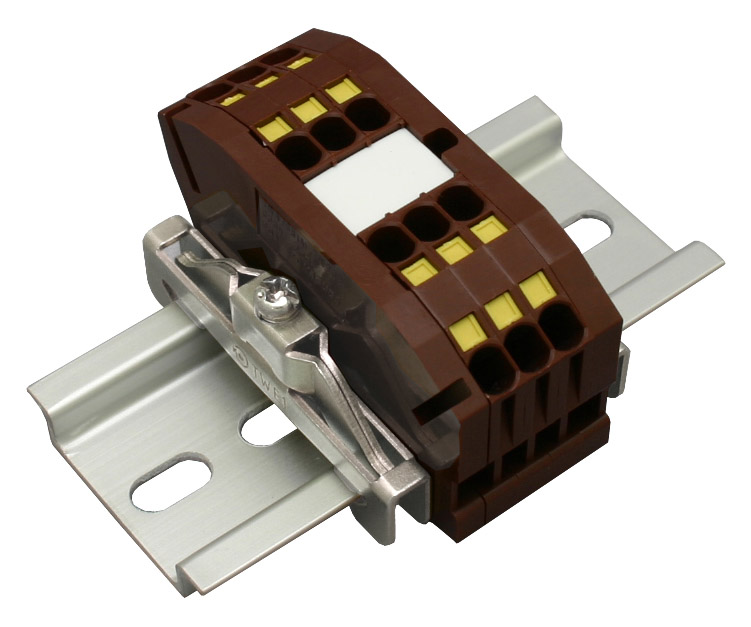

(The image is TW26BC, the color of common unit is brown.)
Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.
| Series | Product Name | Insulating Voltage (V) | Current Ratings (A) | Terminal Pitch (mm） | Applicable Wires（Max.）㎟ | Applicable Wires（AWG） | Wiring |
|---|---|---|---|---|---|---|---|
| TW | TW10B | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 1 to 1 |
| TW | TW15B | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 1 to 2 |
| TW | TW16B | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 2 to 2 |
| TW | TW20B | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 1 to 1 |
| TW | TW25B | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 1 to 2 |
| TW | TW26B | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 2 to 2 |
| TW | TW26BN | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 2 to 2 |
| TW | TW16BC | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 2 to 2（Common Unit: Brown） |
| TW | TW16BCB | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 2 to 2（Common Unit: Blue） |
| TW | TW26BC | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 2 to 2（Common Unit: Brown） |
| TW | TW26BCB | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 2 to 2（Common Unit: Blue） |
| TW | TW15D | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 1 to 2 |
| TW | TW16D | 600 | 10 | 3.5 | 1.25 | AWG28～16 | 2 to 2 |
| TW | TW25D | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 1 to 2 |
| TW | TW25DN | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 1 to 2 |
| TW | TW26D | 600 | 20 | 4.6 | 2.0 | AWG22～14 | 2 to 2 |
| TTW | TTW20D | 600 | 20 | 4.6 | 2.0 | AWG22～14 | (1 to 1)X2 |
