KASUGA Terminal Blocks
Legend Seal
Legend Seal
These are adhesive labels used for marking each pole of the terminal block.

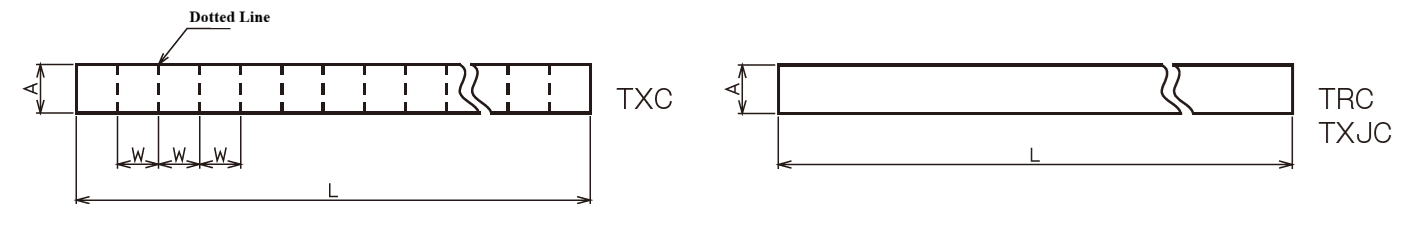

The TXC type has printed dividing lines, allowing you to stamp or mark it before attaching it to the terminal unit.

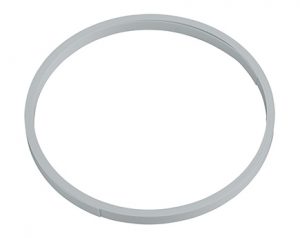

(The image is TRC11.)
| Prod. Name | Dim.（mm） | Applic. TB | Material | Length L | Rough Weight | pcs incl. | ||
|---|---|---|---|---|---|---|---|---|
| Width A | Line Width W | |||||||
| TXC07 | 9.5 | Top | 7.3 | TX7、TXU7 | Vinyl Chloride | 5m | 37g | 1 pc |
| TXC07 | Back | 8.0 | TX10S、TX10SM3、TXU10S、TXU10SM3 | (Thick. 0.5mm) | ||||
| TXC073 | 9.5 | Top | 7.3 | TX7、TXU7 | Polypropylene | 5m | 24g | 1 pc |
| TXC073 | Back | 8.0 | TX10S、TX10SM3、TXU10S、TXU10SM3 | (Thick. 0.5mm) | ||||
| TXC1 | 9.5 | Top | 8.0 | TX10S、TX10SM3、TXU10S、TXU10SM3 | Vinyl Chloride | 5m | 37g | 1 pc |
| TXC1 | Back | 9.5 | TX10、TXU10 | (Thick. 0.5mm) | ||||
| TXC13 | 9.5 | Top | 8.0 | TX10S、TX10SM3、TXU10S、TXU10SM3 | Polypropylene | 5m | 26g | 1 pc |
| TXC13 | Back | 9.5 | TX10、TXU10 | (Thick. 0.5mm) | ||||
| TXC2 | 9.5 | Top | 11.5 | TX20、TXU20 | Vinyl Chloride | 5m | 37g | 1 pc |
| TXC2 | Back | 14.5 | TX30、TXU30 | (Thick. 0.5mm) | ||||
| TXC23 | 9.5 | Top | 11.5 | TX20、TXU20 | Polypropylene | 5m | 24g | 1 pc |
| TXC23 | Back | 14.5 | TX30、TXU30 | (Thick. 0.5mm) | ||||
| TRC21 | 9.5 | Plain | TX、TXU、TT | Fiber | 5m | 32g | 1 pc | |
| TRC21 | TW、TTW、TFP、TTG | (Thick. 0.5mm) | ||||||
| TRC22 | Vinyl Chloride | 5m | 37g | 1 pc | ||||
| TRC22 L100 | (Thick. 0.5mm) | 100m | 740g | 1 pc | ||||
| TRC23 | TL35、TEU14、TNC40 | Polypropylene | 5m | 24g | 1 pc | |||
| TRC23L100 | For Repair | (Thick. 0.5mm) | 100m | 480g | 1 pc | |||
| TRC11 | 6.5 | Plain | TL15、TL25、 | Fiber | 5m | 24g | 1 pc | |
| TRC11 | TEN8、TEN11、 | (Thick. 0.5mm) | ||||||
| TRC12 | TEU8、TEU11、TNC10 | Vinyl Chloride | 5m | 26g | 1 pc | |||
| TRC12L100 | For Repair | (Thick. 0.5mm) | 100m | 520g | 1 pc | |||
| TRC13 | Polypropylene | 5m | 18g | 1 pc | ||||
| TRC13L100 | (Thick. 0.5mm) | 100m | 360g | 1 pc | ||||
| TXJC52 | 5.5 | Plain | TEN7For Repair | Vinyl Chloride(Thick. 0.5mm) | 5m | 24g | 1 pc | |
| TXJC53 | Polypropylene(Thick. 0.5mm) | 5m | 17g | 1 pc | ||||
| T10KIMEISEAL | 5.5 | Plain | T10For Repair | Fiber(Thick. 1mm) | 1m | 6.8g | 1 pc | |
| T20KIMEISEAL | 6.5 | Plain | T20CFor Repair | Fiber(Thick. 1mm) | 1m | 8.1g | 1 pc | |
| T30KIMEISEAL | 9.5 | Plain | T30CFor Repair | Fiber(Thick. 1mm) | 1m | 12.2g | 1 pc | |
| TC60KIMEISEAL | 9.5 | Plain | TC60CFor Repair | Fiber(Thick. 1mm) | 1m | 12.2g | 1 pc |
Note 1: When using Fiber type (TRC21, TRC11), printing with an automatic printer is not possible. Please use a rubber stamp or apply a label instead.
Note 2: For the TXC type, when the number of poles increases, accumulated tolerances may cause misalignment. Please refer to the table below as a guideline for proper use.
Maximum Allowable Number of Poles for seals with Separation Lines
| Terminal Block Product Name | Number of Poles |
|---|---|
| TX7、TXU7、TX10S、TXU10S、TX10SM3、TXU10SM3 | 60 |
| TX10、TXU10 | 50 |
| TX20、TXU20 | 40 |
| TX30、TXU30 | 30 |
●Legend seal for assembled terminal blocks（Parts for Repair）
| Applicable Terminal Blocks(Basic Name） | Legend Seal |
|---|---|
| T10 | T10KIMEISEAL |
| T20C | T20KIMEISEAL |
| T30C | T30KIMEISEAL |
| TC60C | TC60KIMEISEAL |
| TL15、TL25 | TRC11、TRC12、TRC13 |
| TL35 | TRC21、TRC22、TRC23 |
| TEN7 | TXJ52、TXJC53 |
| TEN8、TEN11 | TRC11、TRC12、TRC13 |
| TEU8、TEU11 | TRC11、TRC12、TRC13 |
| TEU14 | TRC21、TRC22、TRC23 |
| TXM | TRC21、TRC22、TRC23 |
| TXUM | TRC21、TRC22、TRC23 |
| TQB | TRC21、TRC22、TRC23 |
| TFPM | TRC21、TRC22、TRC23 |
