End Plate
End Plate
These are the products that cover the end side of rail-mount terminal blocks.

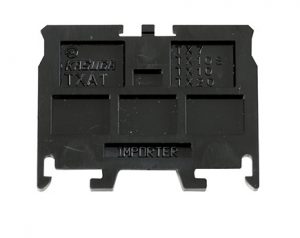

(The image is TXA10B.)
（Note 1） Communal both for right and left
※ Rough Weight of end plates provided as a set shows the weight of a total set.
| Product Name | Applicable Terminal Block | Rough Weight per 1 pc | Included pcs/pairs |
|---|---|---|---|
| TWA10B | TW10B | 4g | 5 pairs per a set |
| TWA15B | TW15B | 4.5g | 5 pairs per a set |
| TWA16B | TW16B | 5.5g | 5 pairs per a set |
| TWA20B | TW20B | 4g | 5 pairs per a set |
| TWA25B | TW25B | 4.5g | 5 pairs per a set |
| TWA26B | TW26B | 7g | 5 pairs per a set |
| TWA16BC | TW16BC | 5.5g | 5 pairs per a set |
| TWA26BC | TW26BC | 10g | 5 pairs per a set |
| TWA16BCB | TW16BCB | 5.5g | 5 pairs per a set |
| TWA26BCB | TW26BCB | 10g | 5 pairs per a set |
| TWA15D | TW15D | 5g | 5 pairs per a set |
| TWA16D | TW16D | 6g | 5 pairs per a set |
| TWA25D（Note 1） | TW25D、TW25DE | 7g | 10 pcs per a set |
| TWA26D（Note 1） | TW26D、TW26DE | 7.5g | 10 pcs per a set |
| TTWA20D | TTW20D | 11g | 5 pairs per a set |
| TXA1 | TX7～TX20 | 2.5g | 10 pcs per a set |
| TXA3 | TX30 | 4g | 10 pcs per a set |
| TXA5 | TX50 | 5g | 10 pcs per a set |
| TXA6 | TX60 | 5.5g | 5 pcs per a set |
| TXA10 | TX100 | 11g | 5 pcs per a set |
| TXA15 | TX150 | 14g | 5 pcs per a set |
| TXUA1 | TXU7～TXU20 | 2.5g | 10 pcs per a set |
| TXUA3 | TXU30 | 4.5g | 10 pcs per a set |
| TXUA5 | TXU50 | 5g | 10 pcs per a set |
| TXUA6 | TXU60 | 6g | 5 pcs per a set |
| TXUA10 | TXU100 | 14g | 5 pcs per a set |
| TTA1SK | TT10SK、TT10SUK、TT10SKM35、TT10SUKM35 | 12.7g | A・B5 pairs per a set |
| TTA2K | TT20K、TT20UK | 22g | A・B5 pairs per a set |
| TFPA20 | TFP15、TFP20 | 2.5g | 10 pcs per a set |
| TFPA40 | TFP40 | 5g | 10 pcs per a set |
| TFPA80 | TFP80 | 7g | 10 pcs per a set |
| TTFPA20 | TTFP203、TTFP2035 | 13g | A・B5 pairs per a set |
| TTGA20 | TTG203、TTG2035、TTG20U3、TTG20U35 | 13g | A・B5 pairs per a set |
| TTGA40 | TTG40、TTG40U | 22g | A・B5 pairs per a set |
