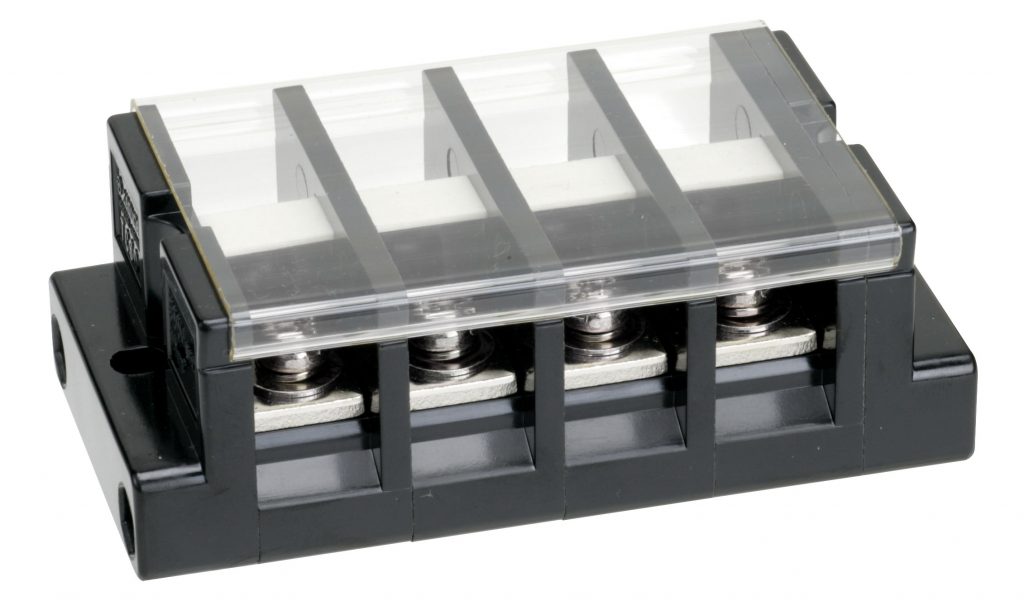

KASUGA Terminal Blocks Assembled (Standard Screw with Round Washer) Screw – Assembled – Standard Screw (with Round Washer) Terminal Block A Standard Screw type equipped with a round washer. Designed exclusively for use with crimp terminals. （The image is TC60C04.） Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（TC series） Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（TXM series） Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page. Series Product Name Insulating Voltage（V) Current Ratings（A) Screw Size Terminal Pitch（mm） Number of Poles Applicable Wires (Max.) ㎟ Applicable Wires (AWG) TC TC60C02 600 70 M5 18.0 2 14 – TC TC60C03 600 70 M5 18.0 3 14 – TC TC60C04 600 70 M5 18.0 4 14 – TC TC60C05 600 70 M5 18.0 5 14 – TC TC60C06 600 70 M5 18.0 6 14 – TC TC60C08 600 70 M5 18.0 8 14 – TC TC60C09 600 70 M5 18.0 9 14 – TC TC60C10 600 70 M5 18.0 10 14 – TXM TXM6002 800 90 M6 19.5 2 22 AWG14～4 TXM TXM6003 800 90 M6 19.5 3 22 AWG14～4 TXM TXM6004 800 90 M6 19.5 4 22 AWG14～4 TXM TXM6005 800 90 M6 19.5 5 22 AWG14～4 TXM TXM6006 800 90 M6 19.5 6 22 AWG14～4 TXM TXM6008 800 90 M6 19.5 8 22 AWG14～4 TXM TXM6009 800 90 M6 19.5 9 22 AWG14～4 TXM TXM6010 800 90 M6 19.5 10 22 AWG14～4 TXM TXM6012 800 90 M6 19.5 12 22 AWG14～4 TXM TXM6015 800 90 M6 19.5 15 22 AWG14～4 TXM TXM6016 800 90 M6 19.5 16 22 AWG14～4 TXM TXM6017 800 90 M6 19.5 17 22 AWG14～4 TXM TXM6018 800 90 M6 19.5 18 22 AWG14～4
