Screw – Assembled – Spring-loaded Terminal Block

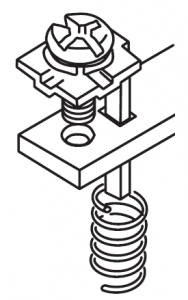

This is a fall-prevention structure where the screw rises and is held in place when loosened, making it ideal for efficient wiring work. It also features a *touch-lock* (temporary hold) function (Note 2, 4), which greatly reduces wiring time when using round crimp terminals. When the screw size is M8, the screw type is a ⊕ Combination Head Hex Bolt.

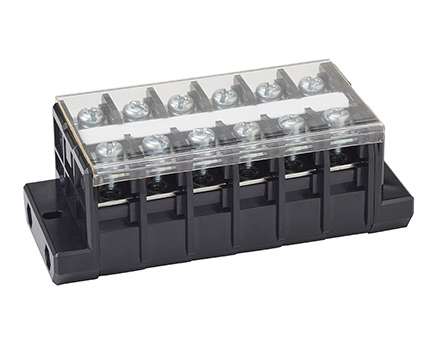

（The image is TXUM3006.)



Common Specifications/ Materials/ Ratings Conforming to Overseas Standards

Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Series Product Name Insulating Voltage（V) Current Ratings（A) Screw Size Terminal Pitch（mm） Number of Poles Applicable Wires (Max.) ㎟ Applicable Wires (AWG)
TXUM TXUM702 800 15 M3 7.3 2 1.25 AWG20～16
TXUM TXUM703 800 15 M3 7.3 3 1.25 AWG20～16
TXUM TXUM704 800 15 M3 7.3 4 1.25 AWG20～16
TXUM TXUM705 800 15 M3 7.3 5 1.25 AWG20～16
TXUM TXUM706 800 15 M3 7.3 6 1.25 AWG20～16
TXUM TXUM708 800 15 M3 7.3 8 1.25 AWG20～16
TXUM TXUM710 800 15 M3 7.3 10 1.25 AWG20～16
TXUM TXUM712 800 15 M3 7.3 12 1.25 AWG20～16
TXUM TXUM714 800 15 M3 7.3 14 1.25 AWG20～16
TXUM TXUM715 800 15 M3 7.3 15 1.25 AWG20～16
TXUM TXUM716 800 15 M3 7.3 16 1.25 AWG20～16
TXUM TXUM718 800 15 M3 7.3 18 1.25 AWG20～16
TXUM TXUM720 800 15 M3 7.3 20 1.25 AWG20～16
TXUM TXUM722 800 15 M3 7.3 22 1.25 AWG20～16
TXUM TXUM724 800 15 M3 7.3 24 1.25 AWG20～16
TXUM TXUM725 800 15 M3 7.3 25 1.25 AWG20～16
TXUM TXUM730 800 15 M3 7.3 30 1.25 AWG20～16
TXUM TXUM10SM302 800 20 M3 8.0 2 2.0 AWG20～14
TXUM TXUM10SM303 800 20 M3 8.0 3 2.0 AWG20～14
TXUM TXUM10SM304 800 20 M3 8.0 4 2.0 AWG20～14
TXUM TXUM10SM305 800 20 M3 8.0 5 2.0 AWG20～14
TXUM TXUM10SM306 800 20 M3 8.0 6 2.0 AWG20～14
TXUM TXUM10SM308 800 20 M3 8.0 8 2.0 AWG20～14
TXUM TXUM10SM310 800 20 M3 8.0 10 2.0 AWG20～14
TXUM TXUM10SM312 800 20 M3 8.0 12 2.0 AWG20～14
TXUM TXUM10SM314 800 20 M3 8.0 14 2.0 AWG20～14
TXUM TXUM10SM315 800 20 M3 8.0 15 2.0 AWG20～14
TXUM TXUM10SM316 800 20 M3 8.0 16 2.0 AWG20～14
TXUM TXUM10SM318 800 20 M3 8.0 18 2.0 AWG20～14
TXUM TXUM10SM320 800 20 M3 8.0 20 2.0 AWG20～14
TXUM TXUM10SM322 800 20 M3 8.0 22 2.0 AWG20～14
TXUM TXUM10SM324 800 20 M3 8.0 24 2.0 AWG20～14
TXUM TXUM10SM325 800 20 M3 8.0 25 2.0 AWG20～14
TXUM TXUM10SM330 800 20 M3 8.0 30 2.0 AWG20～14
TXUM TXUM10S02 800 20 M3.5 8.0 2 2.0 AWG20～14
TXUM TXUM10S03 800 20 M3.5 8.0 3 2.0 AWG20～14
TXUM TXUM10S04 800 20 M3.5 8.0 4 2.0 AWG20～14
TXUM TXUM10S05 800 20 M3.5 8.0 5 2.0 AWG20～14
TXUM TXUM10S06 800 20 M3.5 8.0 6 2.0 AWG20～14
TXUM TXUM10S08 800 20 M3.5 8.0 8 2.0 AWG20～14
TXUM TXUM10S10 800 20 M3.5 8.0 10 2.0 AWG20～14
TXUM TXUM10S12 800 20 M3.5 8.0 12 2.0 AWG20～14
TXUM TXUM10S14 800 20 M3.5 8.0 14 2.0 AWG20～14
TXUM TXUM10S15 800 20 M3.5 8.0 15 2.0 AWG20～14
TXUM TXUM10S16 800 20 M3.5 8.0 16 2.0 AWG20～14
TXUM TXUM10S18 800 20 M3.5 8.0 18 2.0 AWG20～14
TXUM TXUM10S20 800 20 M3.5 8.0 20 2.0 AWG20～14
TXUM TXUM10S22 800 20 M3.5 8.0 22 2.0 AWG20～14
TXUM TXUM10S24 800 20 M3.5 8.0 24 2.0 AWG20～14
TXUM TXUM10S25 800 20 M3.5 8.0 25 2.0 AWG20～14
TXUM TXUM10S30 800 20 M3.5 8.0 30 2.0 AWG20～14
TXUM TXUM1002 800 20 M3.5 9.5 2 2.0 AWG20～14
TXUM TXUM1003 800 20 M3.5 9.5 3 2.0 AWG20～14
TXUM TXUM1004 800 20 M3.5 9.5 4 2.0 AWG20～14
TXUM TXUM1005 800 20 M3.5 9.5 5 2.0 AWG20～14
TXUM TXUM1006 800 20 M3.5 9.5 6 2.0 AWG20～14
TXUM TXUM1008 800 20 M3.5 9.5 8 2.0 AWG20～14
TXUM TXUM1010 800 20 M3.5 9.5 10 2.0 AWG20～14
TXUM TXUM1012 800 20 M3.5 9.5 12 2.0 AWG20～14
TXUM TXUM1014 800 20 M3.5 9.5 14 2.0 AWG20～14
TXUM TXUM1015 800 20 M3.5 9.5 15 2.0 AWG20～14
TXUM TXUM1016 800 20 M3.5 9.5 16 2.0 AWG20～14
TXUM TXUM1018 800 20 M3.5 9.5 18 2.0 AWG20～14
TXUM TXUM1020 800 20 M3.5 9.5 20 2.0 AWG20～14
TXUM TXUM1022 800 20 M3.5 9.5 22 2.0 AWG20～14
TXUM TXUM1024 800 20 M3.5 9.5 24 2.0 AWG20～14
TXUM TXUM1025 800 20 M3.5 9.5 25 2.0 AWG20～14
TXUM TXUM1030 800 20 M3.5 9.5 30 2.0 AWG20～14
TXUM TXUM2002 800 40 M4 11.5 2 5.5 AWG18～10
TXUM TXUM2003 800 40 M4 11.5 3 5.5 AWG18～10
TXUM TXUM2004 800 40 M4 11.5 4 5.5 AWG18～10
TXUM TXUM2005 800 40 M4 11.5 5 5.5 AWG18～10
TXUM TXUM2006 800 40 M4 11.5 6 5.5 AWG18～10
TXUM TXUM2008 800 40 M4 11.5 8 5.5 AWG18～10
TXUM TXUM2010 800 40 M4 11.5 10 5.5 AWG18～10
TXUM TXUM2012 800 40 M4 11.5 12 5.5 AWG18～10
TXUM TXUM2014 800 40 M4 11.5 14 5.5 AWG18～10
TXUM TXUM2015 800 40 M4 11.5 15 5.5 AWG18～10
TXUM TXUM2016 800 40 M4 11.5 16 5.5 AWG18～10
TXUM TXUM2018 800 40 M4 11.5 18 5.5 AWG18～10
TXUM TXUM2020 800 40 M4 11.5 20 5.5 AWG18～10
TXUM TXUM2022 800 40 M4 11.5 22 5.5 AWG18～10
TXUM TXUM2024 800 40 M4 11.5 24 5.5 AWG18～10
TXUM TXUM2025 800 40 M4 11.5 25 5.5 AWG18～10
TXUM TXUM2030 800 40 M4 11.5 30 5.5 AWG18～10
TXUM TXUM3002 800 50 M5 14.5 2 8.0 AWG16～10
TXUM TXUM3003 800 50 M5 14.5 3 8.0 AWG16～10
TXUM TXUM3004 800 50 M5 14.5 4 8.0 AWG16～10
TXUM TXUM3006 800 50 M5 14.5 6 8.0 AWG16～10
TXUM TXUM3008 800 50 M5 14.5 8 8.0 AWG16～10
TXUM TXUM3010 800 50 M5 14.5 10 8.0 AWG16～10
TXUM TXUM3012 800 50 M5 14.5 12 8.0 AWG16～10
TXUM TXUM3015 800 50 M5 14.5 15 8.0 AWG16～10
TXUM TXUM3018 800 50 M5 14.5 18 8.0 AWG16～10
TXUM TXUM3020 800 50 M5 14.5 20 8.0 AWG16～10
TXUM TXUM5002 800 80 M5 15.0 2 14.0 AWG16～10
TXUM TXUM5003 800 80 M5 15.0 3 14.0 AWG16～10
TXUM TXUM5004 800 80 M5 15.0 4 14.0 AWG16～10
TXUM TXUM5005 800 80 M5 15.0 5 14.0 AWG16～10
TXUM TXUM5006 800 80 M5 15.0 6 14.0 AWG16～10
TXUM TXUM5008 800 80 M5 15.0 8 14.0 AWG16～10
TXUM TXUM5009 800 80 M5 15.0 9 14.0 AWG16～10
TXUM TXUM5010 800 80 M5 15.0 10 14.0 AWG16～10
TXUM TXUM5012 800 80 M5 15.0 12 14.0 AWG16～10
TXUM TXUM5015 800 80 M5 15.0 15 14.0 AWG16～10
TXUM TXUM6002 800 90 M6 19.5 2 22.0 AWG14～4
TXUM TXUM6003 800 90 M6 19.5 3 22.0 AWG14～4
TXUM TXUM6004 800 90 M6 19.5 4 22.0 AWG14～4
TXUM TXUM6005 800 90 M6 19.5 5 22.0 AWG14～4
TXUM TXUM6006 800 90 M6 19.5 6 22.0 AWG14～4
TXUM TXUM6008 800 90 M6 19.5 8 22.0 AWG14～4
TXUM TXUM6009 800 90 M6 19.5 9 22.0 AWG14～4
TXUM TXUM6010 800 90 M6 19.5 10 22.0 AWG14～4
TXUM TXUM6012 800 90 M6 19.5 12 22.0 AWG14～4
TXUM TXUM6015 800 90 M6 19.5 15 22.0 AWG14～4
TXUM TXUM10002 1000 130 M8 27.0 2 38.0 AWG8～2
TXUM TXUM10003 1000 130 M8 27.0 3 38.0 AWG8～2
TXUM TXUM10004 1000 130 M8 27.0 4 38.0 AWG8～2
TXUM TXUM10006 1000 130 M8 27.0 6 38.0 AWG8～2
TXUM TXUM10008 1000 130 M8 27.0 8 38.0 AWG8～2
TXUM TXUM10009 1000 130 M8 27.0 9 38.0 AWG8～2
TXUM TXUM10010 1000 130 M8 27.0 10 38.0 AWG8～2
TXUM TXUM10012 1000 130 M8 27.0 12 38.0 AWG8～2
TXUM TXUM10015 1000 130 M8 27.0 15 38.0 AWG8～2
