KASUGA Terminal Blocks

KASUGA Terminal Blocks

Assembled ((+) Hex Bolt, Hex Bolt)

Screw – Assembled – (+) Hex Bolt, Hex Bolt Terminal Block

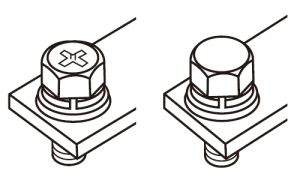

(+) Hex Bolt
A Standard Screw type with a hex bolt that also supports a Phillips screwdriver. For frames with screw sizes M8 or M10, combination head hex bolts are used.
Hex Bolt
A Standard Screw type with a hex bolt. For frames with screw sizes M12, hex bolts are used.

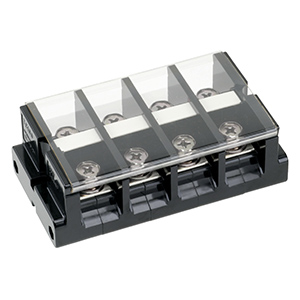

(The image is TC100C04.)



Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（TC series）

Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（TXM series）

Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Series Product Name Insulating Voltage（V) Current Ratings（A) Screw Size Terminal-pitch (mm） Number of Poles Applicable Wires（Max.）㎟ Applicable Wires（AWG）
TC TC100C02 600 130 M8 27 2 38 –
TC TC100C03 600 130 M8 27 3 38 –
TC TC100C04 600 130 M8 27 4 38 –
TC TC100C06 600 130 M8 27 6 38 –
TC TC100C08 600 130 M8 27 8 38 –
TC TC100C09 600 130 M8 27 9 38 –
TC TC100C10 600 130 M8 27 10 38 –
TC TC200C02 600 240 M10 34 2 100 –
TC TC200C03 600 240 M10 34 3 100 –
TC TC200C04 600 240 M10 34 4 100 –
TC TC200C06 600 240 M10 34 6 100 –
TC TC200C09 600 240 M10 34 9 100 –
TC TC200C10 600 240 M10 34 10 100 –
TXM TXM10002 1000 130 M8 27 2 38 AWG8～2
TXM TXM10003 1000 130 M8 27 3 38 AWG8～2
TXM TXM10004 1000 130 M8 27 4 38 AWG8～2
TXM TXM10006 1000 130 M8 27 6 38 AWG8～2
TXM TXM10008 1000 130 M8 27 8 38 AWG8～2
TXM TXM10009 1000 130 M8 27 9 38 AWG8～2
TXM TXM10010 1000 130 M8 27 10 38 AWG8～2
TXM TXM10012 1000 130 M8 27 12 38 AWG8～2
TXM TXM10015 1000 130 M8 27 15 38 AWG8～2
TXM TXM15002 1000 175 M8 28 2 60 AWG6～2/0
TXM TXM15003 1000 175 M8 28 3 60 AWG6～2/0
TXM TXM15004 1000 175 M8 28 4 60 AWG6～2/0
TXM TXM15006 1000 175 M8 28 6 60 AWG6～2/0
TXM TXM15008 1000 175 M8 28 8 60 AWG6～2/0
TXM TXM15009 1000 175 M8 28 9 60 AWG6～2/0
TXM TXM15010 1000 175 M8 28 10 60 AWG6～2/0
TXM TXM15012 1000 175 M8 28 12 60 AWG6～2/0
TXM TXM15015 1000 175 M8 28 15 60 AWG6～2/0
TXM TXM20002 1000 240 M10 39 2 100 AWG4～4/0
TXM TXM20003 1000 240 M10 39 3 100 AWG4～4/0
TXM TXM20004 1000 240 M10 39 4 100 AWG4～4/0
TXM TXM20006 1000 240 M10 39 6 100 AWG4～4/0
TXM TXM20009 1000 240 M10 39 9 100 AWG4～4/0
TXM TXM20010 1000 240 M10 39 10 100 AWG4～4/0
TXM TXM20012 1000 240 M10 39 12 100 AWG4～4/0
TXM TXM30002 1000 310 M10 46 2 150 AWG16～10
TXM TXM30003 1000 310 M10 46 3 150 AWG16～10
TXM TXM30004 1000 310 M10 46 4 150 AWG16～10
TXM TXM30006 1000 310 M10 46 6 150 AWG16～10
TXM TXM30009 1000 310 M10 46 9 150 AWG16～10
TXM TXM30010 1000 310 M10 46 10 150 AWG16～10
TXM TXM40002 1000 400 M12 62 2 200 AWG(MCM)1/0～(500)
TXM TXM40003 1000 400 M12 62 3 200 AWG(MCM)1/0～(500)
TXM TXM40004 1000 400 M12 62 4 200 AWG(MCM)1/0～(500)
TXM TXM40006 1000 400 M12 62 6 200 AWG(MCM)1/0～(500)
