KASUGA Terminal Blocks

KASUGA Terminal Blocks

Assembled (Captive Screw with Touch-lock Function)

Screw – Assembled – Captive Screw Terminal Block

Even when the screw is loosened, it cannot be lost thanks to the captive design.
It also features a touch-lock (temporary hold) function, significantly reducing wiring time when using round crimp terminals.

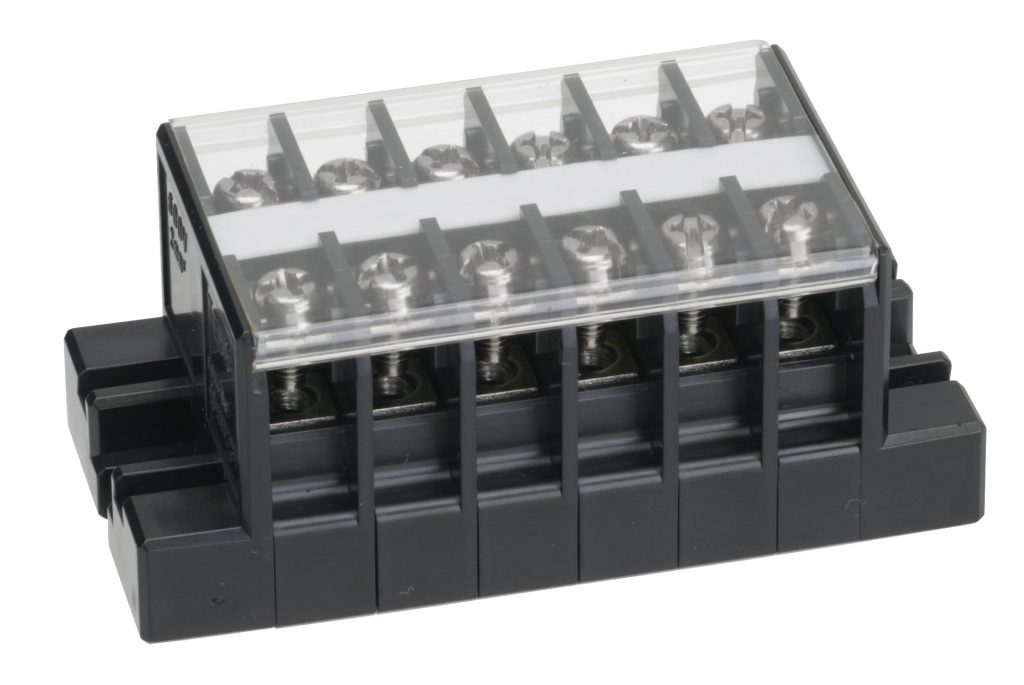

(The image is TEU806.)



Common Specifications/ Materials/ Ratings Conforming to Overseas Standards（TEU series）

Regarding the specifications not listed in the below chart, please check them at: KASUGA Terminal Block Product Search. Datasheets can be referred to from the retrieval page and CAD files can also be downloaded from the link in the result page.

Series Product Name Insulating Voltage（V) Current Ratings（A) Screw Size Terminal Pitch（mm） Number of Poles Applicable Wires (Max.) ㎟ Applicable Wires (AWG)
TEU TEU802 600 20 M3.5 8 2 2.0 AWG20～14
TEU TEU803 600 20 M3.5 8 3 2.0 AWG20～14
TEU TEU804 600 20 M3.5 8 4 2.0 AWG20～14
TEU TEU805 600 20 M3.5 8 5 2.0 AWG20～14
TEU TEU806 600 20 M3.5 8 6 2.0 AWG20～14
TEU TEU807 600 20 M3.5 8 7 2.0 AWG20～14
TEU TEU808 600 20 M3.5 8 8 2.0 AWG20～14
TEU TEU809 600 20 M3.5 8 9 2.0 AWG20～14
TEU TEU810 600 20 M3.5 8 10 2.0 AWG20～14
TEU TEU811 600 20 M3.5 8 11 2.0 AWG20～14
TEU TEU812 600 20 M3.5 8 12 2.0 AWG20～14
TEU TEU813 600 20 M3.5 8 13 2.0 AWG20～14
TEU TEU814 600 20 M3.5 8 14 2.0 AWG20～14
TEU TEU815 600 20 M3.5 8 15 2.0 AWG20～14
TEU TEU816 600 20 M3.5 8 16 2.0 AWG20～14
TEU TEU817 600 20 M3.5 8 17 2.0 AWG20～14
TEU TEU818 600 20 M3.5 8 18 2.0 AWG20～14
TEU TEU819 600 20 M3.5 8 19 2.0 AWG20～14
TEU TEU820 600 20 M3.5 8 20 2.0 AWG20～14
TEU TEU1102 600 30 M4 11 2 3.5 AWG18～10
TEU TEU1103 600 30 M4 11 3 3.5 AWG18～10
TEU TEU1104 600 30 M4 11 4 3.5 AWG18～10
TEU TEU1105 600 30 M4 11 5 3.5 AWG18～10
TEU TEU1106 600 30 M4 11 6 3.5 AWG18～10
TEU TEU1107 600 30 M4 11 7 3.5 AWG18～10
TEU TEU1108 600 30 M4 11 8 3.5 AWG18～10
TEU TEU1109 600 30 M4 11 9 3.5 AWG18～10
TEU TEU1110 600 30 M4 11 10 3.5 AWG18～10
TEU TEU1111 600 30 M4 11 11 3.5 AWG18～10
TEU TEU1112 600 30 M4 11 12 3.5 AWG18～10
TEU TEU1113 600 30 M4 11 13 3.5 AWG18～10
TEU TEU1114 600 30 M4 11 14 3.5 AWG18～10
TEU TEU1115 600 30 M4 11 15 3.5 AWG18～10
TEU TEU1116 600 30 M4 11 16 3.5 AWG18～10
TEU TEU1117 600 30 M4 11 17 3.5 AWG18～10
TEU TEU1118 600 30 M4 11 18 3.5 AWG18～10
TEU TEU1119 600 30 M4 11 19 3.5 AWG18～10
TEU TEU1120 600 30 M4 11 20 3.5 AWG18～10
TEU TEU1402 600 50 M5 14 2 8.0 AWG16～10
TEU TEU1403 600 50 M5 14 3 8.0 AWG16～10
TEU TEU1404 600 50 M5 14 4 8.0 AWG16～10
TEU TEU1405 600 50 M5 14 5 8.0 AWG16～10
TEU TEU1406 600 50 M5 14 6 8.0 AWG16～10
TEU TEU1407 600 50 M5 14 7 8.0 AWG16～10
TEU TEU1408 600 50 M5 14 8 8.0 AWG16～10
TEU TEU1409 600 50 M5 14 9 8.0 AWG16～10
TEU TEU1410 600 50 M5 14 10 8.0 AWG16～10
TEU TEU1411 600 50 M5 14 11 8.0 AWG16～10
TEU TEU1412 600 50 M5 14 12 8.0 AWG16～10
TEU TEU1413 600 50 M5 14 13 8.0 AWG16～10
TEU TEU1414 600 50 M5 14 14 8.0 AWG16～10
TEU TEU1415 600 50 M5 14 15 8.0 AWG16～10
TEU TEU1416 600 50 M5 14 16 8.0 AWG16～10
TEU TEU1417 600 50 M5 14 17 8.0 AWG16～10
TEU TEU1418 600 50 M5 14 18 8.0 AWG16～10
TEU TEU1419 600 50 M5 14 19 8.0 AWG16～10
TEU TEU1420 600 50 M5 14 20 8.0 AWG16～10
